Quick Answer
Garage door sensor alignment troubleshooting starts with cleaning both photo-eye lenses, confirming they sit at the same height (within about ¼ inch), and adjusting the receiving sensor until its indicator light turns steady. Most “broken opener” calls in Minneapolis garages turn out to be blocked lenses, shifted brackets, or pinched wiring, not a failed motor, and a proper fix always ends with a physical reversal test, not just a visual check.
Why Do Garage Door Safety Sensors Matter More Than People Think?
A garage door is one of the largest moving objects in most homes, and the two small plastic boxes near the floor are the only thing standing between a closing door and a child, pet, or parked car. a strange sound, uneven movement, or delayed reversal deserves attention before cold weather sets in, and that warning fits Minneapolis homeowners heading into another freeze-thaw winter where brackets shift and seals contract.
Garage door sensor alignment troubleshooting isn’t a cosmetic fix. It’s a safety intervention. When sensors are blocked, misaligned, or wired incorrectly, the door’s auto-reverse function stops working the way it’s designed to, which is the exact failure mode safety codes were written to prevent.
Most homeowners only notice sensors exist when the door refuses to close. That single symptom, a door that won’t go down even though the opener seems to run fine, is almost always a sensor problem rather than a motor or spring issue.
What Actually Causes Sensor Misalignment?
Sensor failures are rarely dramatic. They’re caused by small, cumulative issues that most homeowners never think to check.
- Blocked lenses: dust, cobwebs, lawn clippings, leaves, or snowmelt residue sitting directly in the beam path.
- Shifted brackets: a bump from a bike, ladder, snowblower, or parked vehicle nudges the bracket out of true alignment.
- Damaged wiring: nicked, pinched, or corroded wires that intermittently cut power to one sensor.
- Vibration: years of door cycles gradually loosen the wing nut holding the sensor in place.
According to a detailed breakdown of what photo-eyes do and why they fail, the sensors work by maintaining an invisible infrared beam between a sending unit and a receiving unit. Interrupt that beam, misalign it even slightly, or dirty the lens, and the system reads it as an obstruction and refuses to close, exactly as it’s supposed to.
Chamberlain-brand openers even flag this directly: diagnostic code 1-1 specifically identifies safety sensors as blocked, misaligned, disconnected, or affected by a wire break, according to Chamberlain’s own diagnostic code reference. That code exists because this is the most common single point of failure in residential garage door systems.
How Do You Troubleshoot Sensor Alignment Yourself?
Before assuming the worst, most sensor issues can be checked in under fifteen minutes with no tools beyond a screwdriver and a soft cloth.
- Cut power first. Unplug the opener or shut off its breaker before touching any wiring or bracket.
- Clear the beam path. Remove boxes, tools, or holiday storage bins sitting near the floor between the two sensors.
- Clean both lenses with a dry microfiber cloth; use only a lightly damp cloth for stuck-on grime, never abrasive cleaners.
- Inspect hardware and wiring for bent brackets, loose wing nuts, corrosion, or wires nicked by a vehicle bumper.

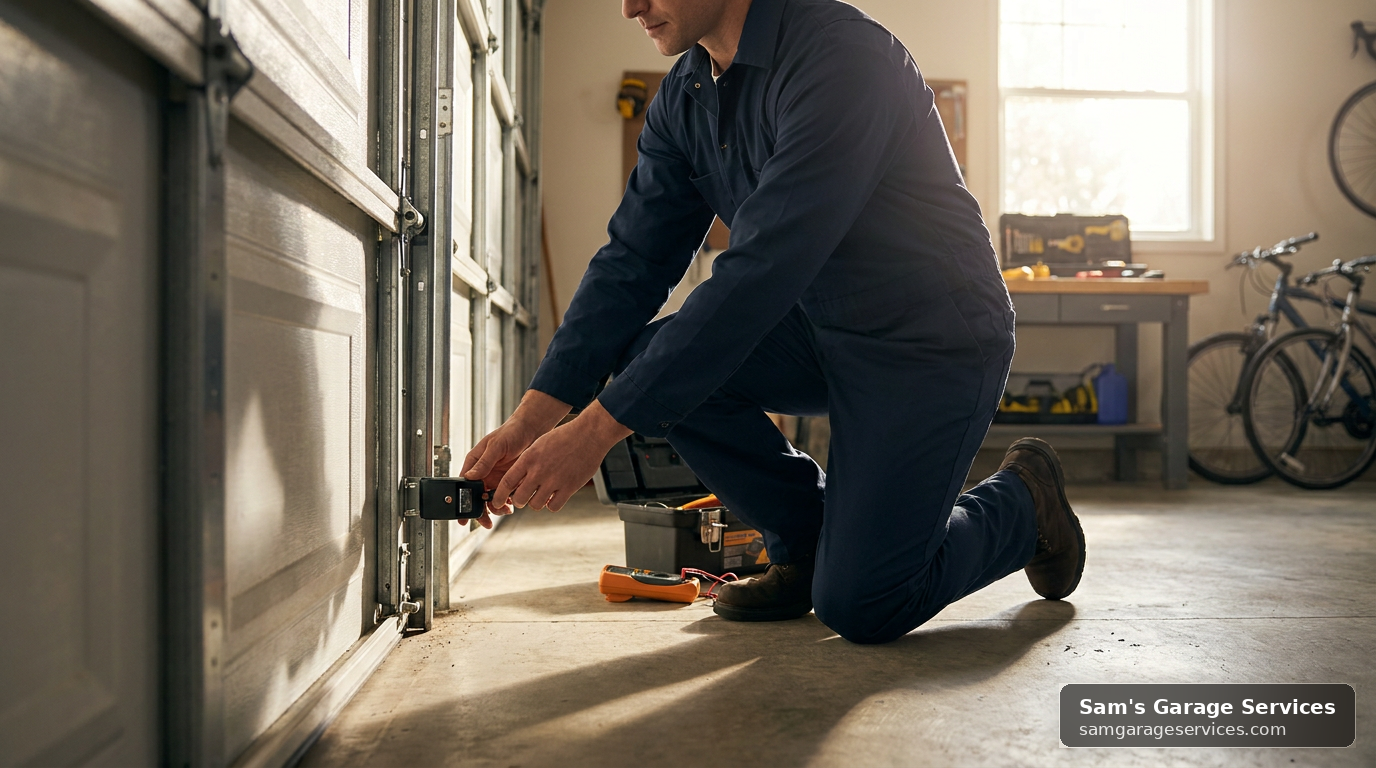

- Realign the sensors. Loosen (don’t remove) the wing nut roughly a half turn, point each lens directly at the other, and make small adjustments until the receiving sensor’s LED turns solid.
- Restore power and run a reversal test. Lay a 2×4 board flat under the door and confirm it stops and reverses on contact, then repeat by waving an object through the beam while closing.
Mounting height matters too: both sensors should sit no more than about six inches above the garage floor, and ideally within a quarter inch of each other, according to Clopay’s manufacturer alignment guidance. On many Chamberlain and LiftMaster systems, a steady amber light on the sending unit and a steady green light on the receiver confirm a properly established beam.
What Do Different Sensor Symptoms Mean?
Different symptoms point to different root causes, and matching the right fix to the right symptom saves an unnecessary service call.
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| One LED is completely off | Disconnected wire, dead sensor, no power | Check wiring connections and continuity before replacing the unit |
| LED flickers or blinks | Near-miss alignment, loose bracket, intermittent wire contact | Retighten bracket, re-aim sensor in small increments |
| Door closes partway and reverses | Beam interrupted by debris or object in path | Clear the floor area, re-test closing cycle |
| Door won’t close at all, no reversal attempt | Severely misaligned or fully blocked sensors | Full clean, realign, and reversal test per manufacturer steps |
This matches the troubleshooting logic outlined in a step-by-step garage door sensor troubleshooting guide, which walks through the same symptom-to-cause pattern technicians use on service calls.
What Does a Licensed Technician Do Differently?
Anyone can wipe a lens. What separates a licensed, insured technician from a quick fix is what happens after the light turns steady.
- Full wiring inspection: tracing the low-voltage wire run back to the opener’s control board to rule out nicks, corrosion, or rodent damage, not just the visible sensor connection.
- Bracket reinforcement: re-anchoring brackets that have loosened in the drywall or track rail so the fix holds under normal door vibration, not just for one test cycle.
- Documented reversal testing: physically testing the auto-reverse function with a solid object, not just confirming the light is on.
- Whole-system check: verifying spring tension, track condition, and opener force settings at the same visit, since a door fighting excess resistance can mask or worsen sensor problems.
- Manufacturer-specific procedure: following the exact alignment tolerance and diagnostic codes for your opener’s brand, since LED colors and height limits vary by model and the owner’s manual takes precedence over generic advice.
Routine inspection catches these issues before they become a stuck-door emergency. Industry guidance on garage door care and maintenance from the International Door Association recommends exactly this kind of periodic professional check, not just reactive repairs after something fails.
What Safety Standards and Warranty Protections Apply?
Garage door openers sold in the U.S. have been required to include external entrapment protection, including photo-eye sensors, since federal safety standards took effect in the 1990s. That’s not optional equipment; it’s a baseline safety requirement built into every modern residential opener.
When a licensed contractor performs the alignment and reversal test, that work should be backed by a service warranty covering the labor and any replaced components, not just a verbal assurance. A reputable company documents the diagnostic code encountered, the fix applied, and the reversal test result, which protects the homeowner if the issue recurs.
Covers: Cleaning, basic re-aim
Risk: Missed wiring/bracket damage
Covers: Full diagnostic, wiring, bracket, retest
Risk: Backed by warranty
Pricing for a sensor alignment or repair visit varies widely based on whether it’s a simple realignment, a wiring repair, or a full sensor replacement, plus your specific opener model and the extent of any related spring or track issues. A straightforward visit can run on the lower end, while wiring repairs, bracket replacement, or a full sensor kit swap push costs higher. Contact a licensed provider for a custom quote based on your exact setup rather than relying on a flat number that may not reflect your situation.
When Should You Stop Troubleshooting and Call a Pro?
Basic cleaning and re-aiming is safe for most homeowners to attempt. But certain signs mean it’s time to stop and call a licensed technician.
- You’ve cleaned and realigned both sensors but the LED still won’t go steady.
- Wiring shows visible fraying, chew marks, or exposed copper.
- The bracket itself is cracked, bent, or won’t hold position after tightening.
- The door reverses randomly even with a completely clear beam path.
- You smell burning or notice the opener’s circuit board showing error codes beyond a simple sensor fault.
As a guide on diagnosing bad garage door sensors points out, persistent faults after a proper cleaning and alignment attempt usually indicate a sensor or wiring failure that needs replacement, not just adjustment.
Key Takeaways
- Most sensor problems are caused by blocked lenses, shifted brackets, or damaged wiring, not a failing opener motor.
- Sensors should sit within about six inches of the floor and within roughly a quarter inch of each other in height.
- A steady LED on both sensors confirms the beam is established; flickering means the alignment is still off.
- Chamberlain’s diagnostic code 1-1 specifically flags blocked, misaligned, or disconnected safety sensors.
- Every alignment fix should end with a physical reversal test using a solid object, not just a visual light check.
- Persistent faults after cleaning and realigning usually point to wiring damage or a failed sensor needing replacement.
- A licensed technician documents the diagnostic, the fix, and the test result, and backs the work with a warranty.
People Also Ask
Why is my garage door not closing?
In the large majority of cases, the door won’t close because a safety sensor is blocked, misaligned, or dirty, causing the opener to assume an obstruction is present. Clearing debris, cleaning both lenses, and realigning the sensors resolves this without any opener repair.
How do I adjust my safety sensors?
Loosen the wing nut about half a turn, gently pivot the sensor up, down, or side to side while watching the receiving unit’s LED, and stop as soon as it becomes steady. Retighten carefully without bumping the sensor out of position, then test.
How do I reset garage door sensors?
Disconnect the opener’s power, clean and realign both sensors until the LEDs are steady, then restore power and run the door through a full open-close cycle. If an error code persists, consult the opener’s manual for the manufacturer’s specific reset sequence.
What does it mean when garage door sensor lights are blinking?
A blinking or flickering light typically means the beam is almost aligned but not quite, or that something is intermittently interrupting it, such as a loose bracket or passing debris. It’s a sign to make small alignment adjustments rather than assuming the sensor has failed.
Frequently Asked Questions
How often should garage door sensors be checked?+
Most manufacturers and professional door associations recommend a visual check every few months and a full professional inspection annually, especially before winter when debris and bracket shifts are more common. Regular checks catch minor misalignment before it causes a full door failure.
Can I align garage door sensors myself, or do I need a professional?+
Basic cleaning and realignment is safe for most homeowners to try first. If the LED won’t hold steady after cleaning and adjusting, or you find damaged wiring or a cracked bracket, it’s time to call a licensed technician for a proper diagnosis.
What height should garage door sensors be mounted at?+
Both sensors should be mounted no more than approximately six inches above the garage floor, and they should be level with each other within about a quarter inch. Check your specific opener’s manual, since exact specifications vary by manufacturer and model.
Is a garage door safe to use if the sensors are malfunctioning?+
No. If the sensors are not functioning correctly, the door’s auto-reverse safety feature may not engage, creating a real entrapment hazard for people, pets, and vehicles. The door should not be used via automatic closing until sensors are repaired and pass a reversal test.
Does homeowners insurance or a warranty cover garage door sensor repair?+
Opener manufacturer warranties typically cover defective sensor units but not damage caused by impact, weather, or wear. A licensed repair company’s service warranty usually covers both labor and parts for a set period after the visit, which is worth confirming before any work begins.
What is the 2×4 reversal test and why does it matter?+
It’s a standard safety check where a 2×4 board is laid flat on the ground under the closing door; a properly functioning door should stop and reverse on contact. This test confirms the auto-reverse system works physically, not just that the sensor lights look correct.
